Animal feed pellet machine for sale
Animal feed pellet machine is the main equipment on the animal feed pellet production line, which is used for the production of all kinds of animal feed pellets, such as poultry feed pellet, ruminant feed pellet, aquatic animal feed pellet. Henan RICHI has been specializing in animal feed pellet machine for sale, we have various types and models of animal feed pellet machines.
RICHI MACHINERY
RICHI 1-45T/H Animal Feed Pellet Machine For Sale
Our 1-45T/H animal feed pellet machines are suitable for all kinds of animal feed pellet mills and breeding plants, especially for medium and large feed pellet plants. As a manufacturer of feed machinery, we have high quality and reasonably priced animal feed pellet machine for sale.
- Capacity: 0.7-45T/H
- Raw materials: corn, wheat bran, soybean meal, forage, alfalfa, premix, etc.
- Applicable animals: chickens, ducks, geese, pigs and other poultry and domestic animals; cattle, sheep, horses, rabbits and other ruminants; fish, shrimp and other aquatic animals.
- Pellet diameter: 2-12mm
- Type of animal feed pellet machines: ring die
- Customizable ring die: Yes
- Conditioner: 1-3 layers. Among them, the animal feed pellet machines are generally one layer, and the 2-3 layers are mainly for fish feed and shrimp feed pellet machines. Besides, customers can also customize according to their needs.
Types of RICHI SZLH animal feed pellet machine for sale
SZLH animal feed pellet machines can also be classified according to capacity, raw materials, animal types, etc. Next, we classify the animal feed pellet machines by animal types.

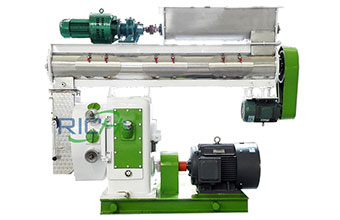

Poultry and livestock feed pellet machine
RICHI SZLH poultry feed pellet machine is a kind of animal feed pelletizer that is very popular with customers.
- Applicable animals: hens, chicks, Broiler Chickens, chickens, ducks, geese, pigs and other animals.
- Raw materials: mixed corn flour, wheat flour and other grain flour, premix, etc.
- Conditioner: 1 layer, customizable.
- Pellet diameter: 2-12mm
- Capacity: 1-45T/H
RICHI SZLH Poultry and livestock feed pellet machine parameters
| Model | Capacity | Main Power | Feeder Power | Conditioner Power | Pellet Size |
| SZLH250 | 1-2T/H | 22kw | 1.1kw | 1.5kw | 2-12mm |
| SZLH320 | 3-4T/H | 37kw | 1.5kw | 2.2kw | 2-12mm |
| SZLH350 | 5-7T/H | 55kw | 1.5kw | 3kw | 2-12mm |
| SZLH420 | 8-12T/H | 110kw | 1.5kw | 7.5kw | 2-12mm |
| SZLH508 | 10-18T/H | 160kw | 2.2kw | 11kw | 2-12mm |
| SZLH558 | 15-25T/H | 180/200kw | 2.2kw | 11kw | 2-12mm |
| SZLH678 | 20-30T/H | 220/250kw | 2.2kw | 11kw | 2-12mm |
| SZLH768 | 25-40T/H | 250/280kw | 2.2kw | 11kw | 2-12mm |
| SZLH858 | 28-45T/H | 315/355kw | 2.2kw | 15kw | 2-12mm |

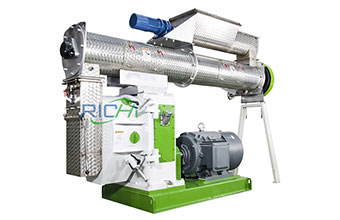

SZLH250 animal feed pellet machine for sale
- Capacity: 1-2T/H
- Main power: 22kw
Ruminant feed pellet machine
Ruminant feed pellet machine, also known as cattle feed pellet machine or grass pellet machine, is customized for grazing animals. RICHI SZLH cattle feed pellet machine is characterized by a anti-knot arch device and a forced feeder.
- Applicable animals: cattle, sheep, horses, camels, rabbits and other ruminants.
- Raw materials: mixed grain powder and forage powder, premix, etc
- Conditioner: 1 layer, customizable.
- Pellet diameter: 2-12mm
- Capacity: 0.7-40T/H
RICHI SZLH ruminant feed pellet machine parameters
| Model | Capacity | Main Power | Feeder Power | Conditioner Power | Pellet Diameter |
| SZLH320 | 0.7-4T/H | 22kw | 1.1kw | 2.2kw | 2-12mm |
| SZLH350 | 1-6T/H | 37kw | 1.5kw | 4kw | 2-12mm |
| SZLH420 | 2-10T/H | 90kw | 1.5kw | 7.5kw | 2-12mm |
| SZLH520 | 3-15T/H | 132kw | 1.5kw | 7.5kw | 2-12mm |
| SZLH768 | 4-30T/H | 250kw | 2.2kw | 11kw | 2-12mm |
| SZLH858 | 5-40T/H | 280kw | 3kw | 15kw | 2-12mm |

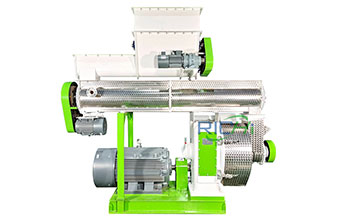

SZLH350 Sheep feed pellet machine
- Capacity: 3-4T/H
- Main power: 37kw

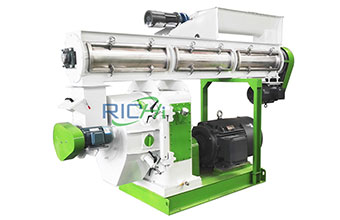

SZLH520 Horse feed pellet machine
- Capacity: 3-15T/H
- Main power: 132kw
Advantages of RICHI SZLH animal feed pellet machine for sale
RICHI SZLH series animal feed pellet machines have the advantages of high output, high pellet molding rate, stable performance, low noise, low maintenance rate, long life and so on.
Gear drive
The main transmission system of RICHI SZLH animal feed pelletizer adopts gear transmission, which increases the output by 15% compared with the belt drive. And the use of high precision aviation grinding process to ensure smooth gear transmission, low noise.
Stainless steel ring die
Stainless steel material can not only avoid machine rust to extend its life, but also can prevent contamination of raw materials to ensure the safety of animal feed. In addition, feeding conveyor, conditioner and gate cover in direct contact with the feed are also made of stainless steel.
Variable frequency feeder
The feeding speed is automatically adjusted so that the animal feed pelletizer can feed evenly without wasting power. In addition, RICHI cattle feed pellet machines are also equipped with anti-knot arch device and forced feeder to ensure the perfect pelleting of grass and other light materials.
Larger conditioner
The conditioner is used to pass steam and has the function of sterilization, curing and increasing yield. Compared with the same industry, the conditioners of RICHI animal feed pellet machines are larger. As a result, the final feed pellets are of better quality, have a higher capacity, and consume less energy.
Safety pin
In case of overload operation or abnormal conditions, the safety pin breaks off to protect the machine from serious damage. As an important part to ensure the safe operation of the equipment, each RICHI animal feed pelletizer is equipped with a safety pin.
Branded accessories
Siemens Motor, SKF bearing. In the choice of machine accessories, RICHI Machinery has been pursuing quality to ensure the overall use and durability of the animal feed pellet machines. In addition, we have customized services, customers can request according to their needs.
Advantages of animal feed pellets
Easy transportation and storage
Compared with mash feed, pellet feeds are less likely to be broken up and graded during transportation. And the extruded pellet feeds have higher density, which is more space-saving during transportation and storage.
Nutrient-rich, promote animal growth
First of all, animal feed pellets are professionally formulated during the production process, which can provide comprehensive nutrition for animals. In addition, the feed pellets produced by RICHI animal feed pellet machine can promote the absorption of animals after high temperature modulation. Thus, the animals can grow faster.
Reduce the probability of animal disease
The feed pellets after high-temperature modulation can reduce a considerable part of germs, especially salmonella, which can largely reduce the probability of animal illness. RICHI animal feed pellet machines are all equipped with a conditioner, which can be fed with steam, which plays an important role in the safety of feed pellets.
Animal feed pelletizer on animal feed production line
Animal feed pelletizer is the main equipment of the pelleting section of the animal feed production line, pressing the mixed feed powder into 2-18mm animal feed pellets at high temperature.
Animal feed production process
From raw materials to the final animal feed pellets, it is necessary to go through the grinding, mixing, pelletizing, cooling, packaging and other sections, which together form an animal feed production line.
Among them, the main equipment used in the pelleting section is animal feed pelletizer. Its working principle is transporting crushed and mixed materials into the variable frequency feeder, and then evenly into the conditioner. In the conditioner, the mash feeds and steam are fully mixed. The prepared material enters the granulation chamber through the chute. Under the strong extrusion of the ring die and the press rollers, feeds are extruded from the ring die holes, and cut to the ideal length.
The temperature of the feed pellets coming out of the animal feed pelletizer is about 80°C and needs to be cooled. If you want smaller feed pellets, you can break them again with a crumbler and finally pack them with a packing machine.
Related cases of RICHI animal feed pellet machines
RICHI animal feed pellet machine related projects have spread to more than 127 countries and regions around the world, you can consult us to get the case in your country.
1-2T/H chicken feed production line in Tanzania
- Date: July 11, 2019
- Raw materials: corn, wheat, soybean meal
- Pellet diameter: 1.5mm, 4mm
- Total power: 47.95KW
- Project equipment: grain crushing machine, RICHI animal feed mixer for sale, RICHI SZLH250 chicken feed pellet machine, etc.
3-4T/H chicken feed pellet production line
- Country: Zimbabwe
- Main raw material: corn
- Pellet diameter: 1-12mm
- Total power: 118KW
- Project equipment: corn crusher machine, animal feed mixer, 37KW chicken feed pellet machine for sale, feed pellet cooler, pellet crumbler, etc.
Cattle feed and chicken feed pellet production line
- Country: Saudi Arabia
- Capacity: 5-6T/H of cattle feed pellets, 10T/H chicken feed pellets
- Main raw material: alfalfa, corn, soybean meal
- Pellet diameter: 1-12mm
- Total power: 554KW
- Project equipment: 110KW animal feed grinder, feed mixer, 160KW animal feed pelletier, pellet cooling machine, pellet crumbler, pellet packing machine, etc.
10T/H animal feed production line
- Date: July 1, 2019
- Country: Uzbekistan
- Raw materials: corn, wheat, sunflower seed, oil, premix, etc.
- Pellet diameter: 0.5-12mm
- Total power: 520kw
- Project equipment: steel silo, RICHI SFSP hammer mill (66*80, 110kw), animal feed mixer (1T/P), RICHI SZLH420 animal feed pelletizer (110kw), RICHI SKLN feed pellet cooler, packing machine, etc.
Services of RICHI Machinery
RICHI Machinery possesses the largest animal feed pellet machinery manufacturing plant in Henan Province, China, and is also the most professional animal feed pellet machinery manufacturer, supplier and exporter in China. We can provide customers with one-stop solutions and turnkey service projects.
Solution design
We have the professional foreign trade sales staffs can communicate with you effectively. And there are professional technicians for you to design animal feed production line solutions that meet your own needs.
Equipment selection
With 500+ equipment models, customers have a wide range of choices. What’s more, we can customize the animal feed pellet machines and the auxiliary equipment according to your needs.
Installation and debugging
We will send professional installation engineers and technology to guide your on-site installation, and debug your machine to the best working state in the first time. So, RICHI Machinery can ensure the good operation of the animal feed pellet machines.
After-sales service
Our machines have a one-year warranty. In addition, our company can provide customers with free technical guidance for life. If you have any needs, you can inquire and consult us, we have all day online customer staff to serve you.
Frequently Ask Question
Frequently Ask Question
How to choose the right animal feed pellet machines?
- According to your raw materials, pellet types. Because of each machine has its own characteristics. For example, RICHI cattle feed pellet machine is designed for feed containing grass. RICHI chicken feed pellet machine for sale, it has a greater capacity to meet the larger feed demand for animals such as chickens or pigs.
- According to the capacity of the animal feed production line you want to set up. RICHI 1-45T/H animal feed pellet mill capacity from 1T/H to 45T/H, animal feed production line capacity can be as high as 100T/H.
- Look at the quality of the animal feed pellet machine for sale, such as the quality of the dies, the brand of the motor and so on. RICHI is superior in the material of the animal feed pellet machines, the quality of the ring die and the brand of the accessories.
To sum up, the RICHI animal feed pellet machine is worth considering. Tell us about your raw material, the type of feed pellets you want to produce, the pellet size, the production capacity, and we will recommend the right animal feed pellet machines for you.
How to choose the animal feed pellet machine manufacturers?
Choosing a reliable animal feed pellet machine manufacturer is the top priority of an animal feed production line. Because animal feed pellet machine directly determines the capacity and quality of animal feed production line.
First of all, choose a qualified company, such as RICHI Machinery. We have passed CE, ISO,BV and other certifications, and obtained nearly 20 professional certificates.
Second, choose a company with a lot of experience. At present, RICHI Machinery’s poultry feed pellet machine, chicken feed pellet machine, cattle feed pellet machine, and other animal feed pellet machines have been exported to 127 countries and regions, with 2000+ projects.
Third, choose a company with high quality equipment. High quality animal feed pellet machine can not only improve the efficiency of production, but also reduce the maintenance rate, thereby improving its cost performance. RICHI Machinery has our own factory, the production process and quality control is very strict. So, we can ensure to provide customers with high-quality animal feed pellet machine for sale. If you are looking for an animal feed pellet machine manufacturers, please contact us.
